Mastering Voltage Drop in Landscape Lighting Design: A Must-Do?
The harmonious blend of science and art, landscape lighting design demands an intricate understanding of a myriad of elements. One such essential concept is that of ‘voltage drop’.
The term ‘voltage drop’ might seem intimidatingly technical to those unaccustomed to electrical terminologies. Still, it holds the key to successful landscape lighting that showers your outdoor space with just the right amount of light. Voltage drop refers to the decrease in electrical voltage experienced as electric current moves through a wire or electrical circuit.
It occurs due to the inherent resistance offered by the conducting wire, which acts as an obstacle against the smooth flow of electric current. Essentially, if you imagine electricity as water flowing through a pipe (representing the wire), voltage drop is akin to the water pressure decreasing due to obstructions within this pipe.
The Art and Science behind Voltage Drop in Landscape Lighting
The delicate balance between aesthetic preferences and technical acumen forms the backbone of landscape lighting design. Herein lies our need for comprehending voltage drop; understanding this principle allows us to manage our resources effectively and create visually stunning landscapes without compromising on functionality or longevity.
Electricity is like an invisible life force responsible for transforming your landscape into a luminous work of art when darkness descends. However, should there be any lapses in its journey from source (transformer) till destination (light fixtures), your lights may not operate optimally or project desired brightness levels – a phenomenon primarily caused by voltage drop.
Understanding Voltage Drop: A Key Player in Landscape Lighting Design
When embarking on a new landscaping project or attempting upgrades on existing ones, comprehending how voltage drop influences your plans is crucial. This influence starts with choosing proper light fixtures and extends to all aspects, including layout planning, systematic wiring routing, transformer capacity, decision-making, etc.
An understanding of voltage drop adds a technical dimension to your aesthetic vision, empowering you to create designs that are not only visually delightful but also energy-efficient and cost-effective. It’s the difference between a landscape that merely looks good and one that performs well.
The Subtle Influence of Voltage Drop on Landscape Lighting Designs
A balanced and well-lit landscape is the true litmus test for any landscape lighting design. Without an understanding of voltage drop, this balance can easily be disrupted, leading to lights that are either too dim or glaringly bright – both undesirable extremes that mar the artistic appeal of your outdoor space. Therefore, by factoring in voltage drop during the design phase itself, we can preempt possible issues related to fluctuating brightness levels or premature bulb burnout, thus ensuring that our landscapes continue to shine brightly with consistent intensity across all light fixtures, irrespective of their location or distance from the transformer.
Light up your Landscape: The Importance of Calculating Voltage Drop
Unveiling optimization opportunities in landscape lighting designs is only possible when we shed light on every detail involved, which undoubtedly includes voltage drop calculations. By treating it as an essential step rather than an optional afterthought, you grant yourself power over potential challenges before they manifest into tangible issues.
In short, calculating voltage drop allows us to wield control over our designs’ electrical needs while enabling us to visualize exactly how our landscapes will look once lit up! So let’s delve deeper into this electrifying world where art meets science – let’s explore how critically calculating voltage drop impacts our pursuit of creating beautifully lit landscapes.
Understanding the Basics: Electricity and Landscape Lighting
The Mysterious Current: A Brief Overview of How Electricity Works
At its core, electricity is a form of energy generated by the movement of electrons from one point to another. This journey of electrons is directed through a conductor, forming an electric current. Electric potential, better known as voltage, acts as the motivating force that propels these electrons. It is similar to the pressure that drives water through a pipe.
In an electrical system, there are three essential components: voltage (V), current (I), measured in amperes or amps, and resistance (R), quantified in ohms. These elements interrelate based on Ohm’s Law, which states that V = I x R; voltage equals current multiplied by resistance. This fundamental principle governs all electrical circuits.
An easy way to visualize this concept involves picturing a garden hose. Here, water (a hydraulic analogy for electricity) flows through the hose (current) under pressure (voltage) while being opposed by friction (resistance). If you increase the pressure or decrease the friction, more water will flow – just as increasing voltage or reducing resistance will result in more current.
While powering artificial light sources such as lamps or bulbs, electricity heats up a filament inside these objects until it starts glowing brightly enough to emit visible light. This process is called incandescence and forms the basis for traditional landscape lighting techniques.
Modern-day landscape lighting solutions often utilize light-emitting diodes (LEDs). Unlike traditional methods relying on heat generation for illumination, LEDs produce light due to electroluminescence – radiating light when an electric current passes through them.
The Driving Force: The Role of Voltage in Landscape Lighting
Voltage plays an incredibly significant role in the realm of landscape lighting. It is the force that ensures electricity flows from your power source to your lights, enabling them to function correctly and illuminate your surroundings. The amount of voltage supplied to a light fixture directly influences its brightness. In simpler terms, a higher voltage typically results in a brighter light.
However, it’s crucial not to exceed the manufacturer’s recommended voltage rating for each fixture – doing so could lead to damaging or shortening the lifespan of your lights. Most contemporary landscape lighting fixtures are designed for either 12 or 120 volts. The choice between these two options largely depends on the specific requirements and constraints of each project. For example, low-voltage (12V) lighting systems might be preferred due to their safety, versatility, and lower installation costs.
On the other hand, line-voltage (120V) landscape lighting can provide robust lighting over large areas and long runs of wiring without major concerns about voltage drop – a phenomenon we will delve into shortly. Regardless of choice made between low-voltage or line-voltage systems, optimizing voltage use is key for efficient energy consumption while ensuring the desired lighting levels.
The Invisible Saboteurs: The Impact of Distance and Wire Size on Voltage
In any electrical circuit – including those involved in landscape lighting – distance and wire size substantially influence how much voltage reaches its intended destination: your light fixtures. Primarily, as electricity travels along a wire towards a light fixture, some energy is invariably lost due to resistance within that wire – a process known as ‘voltage drop’.
This loss directly impacts how efficiently your lights function – with greater distance traveled leading to more consequential losses. In relationally longer circuits or those involving lower quality or thinner wires (higher gauge number), this could result in insufficient voltage reaching your lights, causing them to dim or flicker. If this voltage drop is significant enough, your lights may not function at all.
Wire size also plays an integral role in determining voltage drop. Simply put, the larger (thicker) the wire, the lower its resistance and thus less the voltage drop. Therefore, usage of thicker wires can help mitigate voltage drops over long distances – although it does come with increased material costs. Understanding and carefully planning for these aspects during landscape lighting design can help ensure your lights shine bright and true – exactly as they were intended to!
The Necessity of Calculating Voltage Drop in Landscape Lighting Design
Why Voltage Drop Matters: An Intrinsic Component to Effective Lighting
Voltage drop in landscape lighting systems is an essential concept that requires a thorough understanding and careful consideration. To neglect its calculation is to invite a plethora of undesirable outcomes, all of which significantly impair the overall performance and longevity of the lighting system.
As complex as it may seem, voltage drop fundamentally pertains to the depreciation in electrical power as it travels along a wire. All wire inherently carries a certain level of resistance, and this resistance increases proportionally with distance and inversely with wire size. Consequently, as electricity travels through increasingly extensive sections of wire or through wires with smaller diameters, voltage drops correspondingly increase. The result?
The final light fixture in the run receives less voltage than the first fixture, leading to inconsistent light levels throughout your landscape. This lack of uniform brightness not only detracts from aesthetics but can also potentially pose safety issues, especially if walkways or staircases are unevenly lit.
Ensuring Optimal Functionality: A Question of Balance
To ensure optimal functionality in landscape lighting design, calculating voltage drop becomes paramount. Each light fixture has its ideal operating voltage range; stay within this range and you will encounter minimal problems; provide too much or too little voltage, however, your fixtures may suffer from reduced brightness or discoloration. While incandescent bulbs generally exhibit more tolerance towards under-voltage situations by simply dimming their brightness output accordingly, LED lights are less forgiving.
Prolonged exposure to substantial undervoltage conditions can cause LEDs to flicker erratically or fail prematurely. The inadequacy in brightness output will eventually negate any previously conceived design intents for ambiance creation or safety enhancement, leading to a subpar user experience, explaining why calculating correct voltage drop numbers right from the design phase is absolutely critical.
Maintaining Consistent Light Output: A Lighting Necessity
Just as an artist wouldn’t want his canvas marred by unforeseen splotches of inconsistency, landscape lighting designers strive for uniform luminosity throughout. Inconsistent brightness levels disrupt visual continuity and consequently the overall aesthetic appeal of your landscape. Voltage drop calculation becomes the magic wand that dispels this darkness of unpredictability.
It enables professionals to design systems that maintain consistent light output across all fixtures, regardless of their position in the electrical run. With accurate voltage drop calculations, electricians can select appropriate wire sizes and lengths to distribute power evenly, ensuring each fixture performs at its peak capacity.
Prolonging the Lifespan of Lights: A Conscious Investment for Future Savings
Beyond immediate impacts on brightness and consistency, voltage drop also intrudes upon your lights’ lifespan. Over time, a continuous over- or under-supply of voltage causes unnecessary wear and tear on bulbs, pushing them towards an untimely demise. LED lights particularly stand out in this regard – while they may boast longer lifespans than their incandescent counterparts under optimal conditions, they are equally more susceptible to poor voltage regulation.
As such, failure to calculate and manage voltage drops can result in frequent replacements – an avoidable expense both financially and environmentally. In contrast, when calculated correctly from the get-go, voltage drops can be managed effectively, contributing significantly towards prolonging your lights’ lifespan, making it a sound investment towards future savings and sustainability efforts.
Potential Problems Caused by Ignoring Voltage Drop Calculation: A Cautionary Tale
It doesn’t take long for problems to surface if you ignore calculating voltage drop in landscape lighting design. As previously discussed, inconsistencies in brightness level pose safety risks, especially for landscapes with considerable differences in elevation or complex path designs where shadows could easily obscure potential tripping hazards.
Moreover, in extreme cases, excessive voltage drops could cause lights to fail entirely. This not only disrupts the intended design but may also lead to costly replacements or even an entire system overhaul if the issue has been left unaddressed for extended periods.
Ultimately, failing to calculate voltage drop diminishes your landscape’s aesthetic value and compromises user safety. Both are significant costs to pay for such a manageable detail.
Steps to Calculate Voltage Drop in Landscape Lighting Design
Identifying Required Information for Calculation
The first step towards calculating the voltage drop in landscape lighting design is to gather all pertinent details. The process might appear daunting at first, but with a meticulous grasp on the necessary information, it becomes considerably more manageable.
Firstly, identify the types and number of lights being used in your landscape lighting design. Each type of light bulb – be it LED, halogen, or incandescent – has different wattage requirements, and this greatly impacts the total load your system will carry. Additionally, you must consider the sum total of all bulbs as they collectively contribute to your overall load.
Understanding the wire size and total length is another crucial aspect. The wire’s size and length affect its resistance to electrical flow, which directly impacts voltage drop. Choose a wire that is thick enough to minimize resistance while remaining practical for your specific layout.
The power supply rating or transformer rating is equally important. It needs to be sufficient enough not just for current lighting arrangements but also future additions if any are planned. Bear in mind that there are several online tools and calculators available that can help streamline this process if you provide them with these critical data points.
Detailing the Types and Number of Lights Used
In landscape lighting design, we often use a mixture of various types of lights depending on their applications, such as path lights, spotlights, flush mounts, etc. Each type utilizes varied amounts of wattage, which contributes differently towards your overall load.
For instance, an LED light may use 6 watts, whereas a halogen lamp might require 20 watts; an incandescent bulb even more so at about 40 watts per unit. These are ballpark numbers but illustrate how drastically different each type can be when it comes to energy consumption.
Next comes quantity: simply put, the more bulbs you have, the higher your total load will be. A system with 10 LED lights will naturally require less power than a system with 15 halogen lamps. Therefore, it’s important to document the number and type of each light in your landscape design.
These numbers are crucial as they directly influence the transformer rating needed for your system. With this information, you can make an informed decision on what kind of transformer would best suit your requirements.
Understanding Wire Size and Total Length

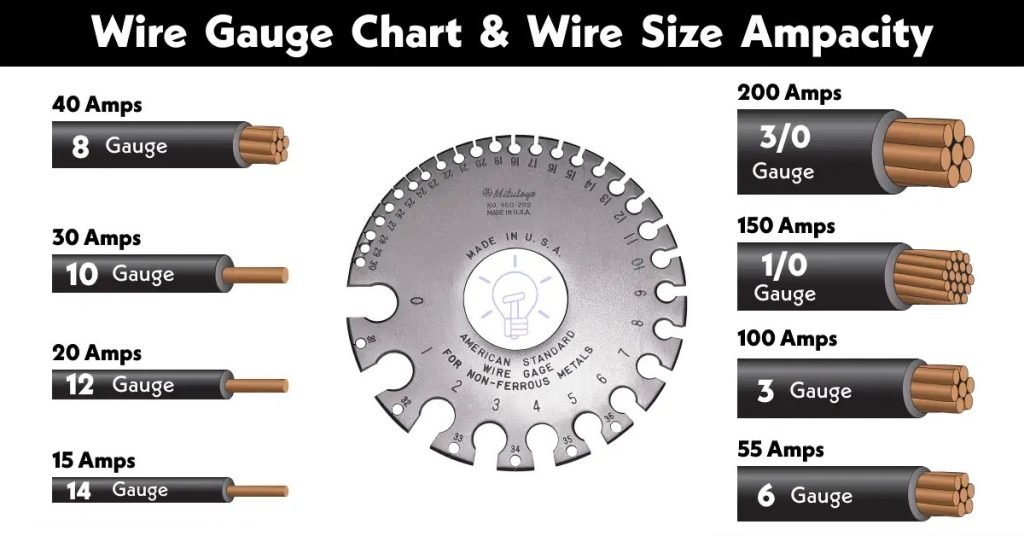

In regards to wire size, there is a direct relationship between wire size (or gauge) and resistance: the thinner the wire, the higher its resistance to electrical flow, and vice versa. Thick wires allow for a smooth flow of electricity, which aids in reducing voltage drop. Your total wire length plays a role as well; longer runs lead to greater voltage drops because they offer more resistance.
This is especially pertinent in larger properties where you might need to run lengthy stretches of cable to reach desired areas. Moreover, considering that every connection or joint in cabling adds its own micro-resistance to the line, it becomes imperative that landscape lighting designs minimize connections wherever possible or use proper connectors guaranteed for minimal resistance.
Knowing the Power Supply or Transformer Rating
But most certainly not least comes your power supply or transformer rating. The key here is balance: your transformer should be powerful enough to handle all present lights plus any future additions if planned while also not being so large that it wastes energy unnecessarily.
Traditionally, transformers are available in several ratings, such as 100W, 200W, 600W, etc. To select one suited for your needs requires an understanding of how much load (in watts) you intend on placing upon it. A good rule of thumb when determining what wattage transformer you need is adding up all light bulb wattages, then adding another twenty percent as a buffer. This ensures that even if you add more lights down the line, your transformer will be able to handle the additional load.
Calculation Process Explained Step-by-Step
Now that we have all our needed information, let’s walk through the process of calculating voltage drop. Start by adding up all your light bulb wattages to get total wattage. Next, divide this number by your system’s voltage (usually 12V for landscape lighting designs) to determine total amperes of current.
Then, calculate wire resistance. You do this by multiplying wire length in feet by 2 (to account for both supply and return legs), then multiplying again by resistance per foot (dependent on wire gauge).
Multiply total amperes with wire resistance to arrive at voltage drop expressed in volts. This final figure should ideally be less than 3-5% of your system’s voltage to ensure optimal operation and performance of your landscape lighting design. However, since LED lights work well even at 9V, a voltage drop of up to 3V can be tolerated in low voltage landscape lighting applications.
Unraveling the Enigma: Demonstrating a Real-Life Scenario
To manifest the significance of voltage drop calculation in landscape lighting design, let us delve into a hypothetical case study. This approach will help to elucidate the concept more clearly, leading us from abstraction to practicality by walking through an authentic scenario.
Imagine designing a serpentine walkway in a sprawling garden estate that demands strategic lighting. The garden spans 200 feet with ten fixtures spread equidistant along its serpentine walkway. Each luminary has an LED bulb that consumes 4 watts, and we are using a 12-volt system for this project.
In our quest for ambient nighttime aesthetics, we have selected copper wiring for its superior conductivity and durability against harsh outdoor elements. Considering the expansive coverage area and wire length, we will be using 12-gauge wire to manage resistance effectively. The power source or transformer used in this landscape lighting design is rated at 100 watts.
This was determined based on our total wattage consumption – ten light fixtures each consuming 4 watts give us a total wattage of 40 watts – allowing some room for flexibility if additional lights are needed in future installations. We aim to stay within standard performance parameters and ensure that voltage drop doesn’t exceed three volts from the first light nearest to the power source to the last light at the end of our landscape installation.
A Guided Journey: Calculating Voltage Drop
Moving further into our conceptual journey, it’s prime time to grasp how voltage drop calculation can be performed using provided data for this specific set-up. The first step entails calculating the total amperage of our system using Ohm’s Law (I = P / V), where ‘I’ is current (in amperes), ‘P’ is power (in watts), and ‘V’ represents voltage.
Since the total wattage of the LED lights is 40 watts and the system voltage is 12 volts, the current equals approximately 3.33 amps. Next, we apply Kirchhoff’s Voltage Law, which dictates that the total voltage supplied in a closed circuit must equal the sum of all voltage drops within that circuit.
Factoring in electrical resistance (which we obtain from standard wire resistance charts for a 12-gauge copper wire) and the total length of our wire run (400 feet), we can calculate potential voltage drop. The formula for calculating the voltage drop is Vd = I x R, where ‘Vd’ represents potential voltage drop, ‘I’ denotes current, and ‘R’ signifies resistance.
Let’s assume that the resistance for a 12-gauge copper wire per 1000 feet is around 1.588 ohms at room temperature (68°F or 20°C). So, for our total length of wire – 400 feet – the resistance would be approximately 0.6352 ohms.
Substituting these values into our formula gives us an approximate voltage drop of about 2.12 volts – well within our target not to exceed three volts from first light to last light along the walkway. Through this practical example, it becomes apparent how imperative accurate calculation is in preserving harmonious illumination throughout a landscape lighting design project.
Advanced Topics: Overcoming Challenges related to Voltage Drop
Exploring Solutions for High-Voltage Drops: Harnessing Higher Rated Transformers and Parallel Wiring
A voltage drop in landscape lighting design can prove a daunting challenge, particularly if not addressed early. However, there are proven strategies that can mitigate this issue.
One of these involves leveraging higher-rated transformers. This solution is particularly fitting when the load is substantial or the distance from the transformer to the furthest fixture exceeds recommended guidelines. Higher-rated transformers accommodate more wattage and thus ensure adequate voltage reaches each light fixture.
Next, consider wire size as a pivotal factor in voltage drop management. Large-diameter wires possess lower resistance compared to their smaller counterparts, hence resulting in fewer voltage losses across significant distances. By selecting an appropriate wire gauge – preferably larger than standard – designers can effectively minimize voltage drop.
Moreover, one may resort to using multiple circuits from the transformer, each serving a portion of the total load rather than a single circuit serving all fixtures. This approach ensures shorter distances from each light source to the transformer and consequently lessens voltage drop.
Parallel wiring offers another viable solution for high-voltage drops. In this arrangement, each light connects directly to its power source, ensuring equal distribution of current across all components regardless of their position in the circuit.
Fundamentally important is revisiting your landscape design plan. Limiting lengthy distances between fixtures and power supplies or prioritizing energy-efficient lighting fixtures could potentially reduce high-voltage drops significantly.
Balancing Act: Energy Efficiency versus Adequate Lighting
A crucial consideration when addressing challenges related to voltage drop is finding a balance between energy efficiency and adequate lighting. While LED bulbs have gained popularity due to their energy-saving properties and longevity, they operate on low voltage. This characteristic may cause a significant voltage drop if not properly managed, leading to inconsistent illumination.
The first step towards achieving a balance is understanding the wattage required for your landscape lighting design. By keeping the total wattage used by your lighting fixtures within the transformer’s maximum capacity, you can ensure energy efficiency without compromising light quality.
Another strategy could be employing voltage drop-reducing techniques such as using larger wire gauges or multiple circuits from the transformer, as previously discussed. These methods will help sustain adequate voltage levels at each light fixture without undue energy wastage.
Also, consider integrating dimmer controls in your landscape lighting design. Dimmers allow you to adjust light intensity according to requirements and preferences while saving energy when full brightness isn’t necessary.
Maintaining a balance between energy efficiency and adequate lighting in the face of voltage drop challenges requires a calculated approach. Combine LED bulbs with appropriate wire gauges, efficient power distribution techniques, and smart control features for optimal results.
Conclusion: Do We Need to Calculate Voltage Drop in Landscape Lighting Design?
The Crucial Role of Voltage Drop Calculation in Landscape Lighting Design
In the realm of landscape lighting design, calculating voltage drop is a task that should never be dismissed with nonchalance. An intricate part of the design process, it possesses a profound effect on the overall performance, longevity, and visual impact of your lighting system.
Failure to take account for this essential facet could result in lights that flicker or exhibit varying levels of brightness, thus detracting from the aesthetic appeal and functionality your landscape should provide. Beyond aesthetics and operational effectiveness, incorporating voltage drop calculation can also substantively prolong the lifespan of your lights.
By ensuring each light fixture receives an optimal level of voltage, you can mitigate potential issues related to premature burnout or unnecessary wear and tear. This not only equates to a longer service life for each component but also reduces maintenance costs over time.
Avoiding Pitfalls with Proper Voltage Calculation
The process may seem daunting initially given its technical nature, yet ignoring it could lead to dire consequences. The adverse effects range from lackluster performance due to inconsistent brightness levels across fixtures or entire sections operating below their optimum capacity because they are supplied with less than adequate voltage. These pitfalls can be easily avoided by carefully factoring voltage drop into your landscape lighting designs.
Moreover, this foundational knowledge empowers homeowners or designers alike to make informed decisions when selecting equipment such as transformers or wires, while also influencing their arrangement within the plan. A meticulous approach to these considerations ultimately contributes toward crafting a harmonious balance between energy efficiency and achieving desired lighting levels.
Embracing Challenges: The Way Forward
Acknowledging these challenges does not necessarily mean conceding defeat but rather signifies an opportunity for growth as well as enhancement within this specialized sector. By embracing the need for voltage drop calculation in landscape lighting design, professionals can continue to push the boundaries of creativity while ensuring their creations are underpinned by solid electrical principles.
The Bright Future of Landscape Lighting
With an increasing emphasis on green solutions and energy efficiency in our society, mastering this aspect could also pave the way for more sustainable lighting practices. The understanding and ability to articulate such complex principles reflect the evolving finesse of landscape designers today, effectively casting a promising light on future innovations within this sphere.
Calculating voltage drop is not merely an optional step that one can choose to bypass or ignore. It is a fundamental necessity that equips one with the insights required for designing effective, efficient, and aesthetically pleasing landscape lighting systems. Reiterating its importance serves as a reminder that behind every beautiful light lies an intricate web of calculations – a statement of the perfect blend between science and art.
